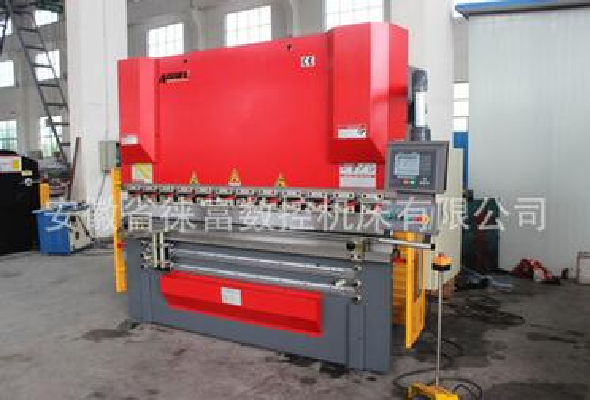

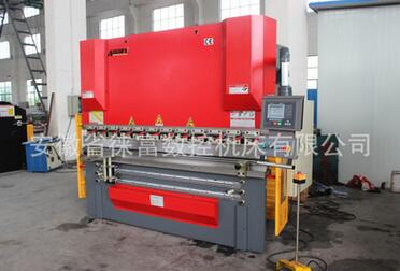

CNC bending machine

CNC bending machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Negotiable
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-07-17
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  anhui
  • Brand Name:  laifu
  • Model Number:  100T-3200

Main performance characteristics of the whole machine:

1, the frame adopts steel overall welding structure, internal stress eliminated by normalizing and high frequency vibration, ensure the overall accuracy of the machine, with excellent rigidity, excellent anti distortion, anti tilt capability. The worktable thickening, thickening of the slider, so the machine has high rigidity, so when bending slider work Taiwan has little deformation and straightness and angle of workpiece with excellent consistency.

2, referring to the German DIN55222T2-80 standard design.

3, the hydraulic system uses the integrated control system, reduces the pipeline installation, uses the import seal ring, enhanced the work stability of the machine tool, the appearance is beautiful and simple.

4, the main oil cylinder piston machine using space technology - surface nickel phosphorus treatment, the hardness is HRC60, the guide sleeve and the piston relative motion with a zinc base alloy self lubrication, the cylinder is in good working condition for a long time.

5, using the torsion shaft synchronization, mechanical block, reliable, economic, high precision.

6, after the distance of the block, the upper slider stroke by CNC system automatic adjustment, can also be manually adjusted to facilitate the operation.

7, the upper die is equipped with a winding compensation mechanism.

Main configuration:

1, Taiwan delta touch screen Chinese CNC system (or Holland DELEM numerical control system) with unidirectional and bidirectional positioning function, can effectively eliminate the screw clearance, with concessions selection function, avoid blocking device and workpiece interference, reduce wear, improve the positioning accuracy, with automatic or manual search reference point. The function of power and position memory function with the parameters, position and procedures for the protection of the site. A multi-step processing programming function, can realize multi step operation, complete the multi-step parts processing, improve the production efficiency. One axis servo motor automatic control slider on travel adjustment, another axis servo motor control after the block selection of Taiwan. ABBA ball screw guide.

2, the main oil cylinder seals by Japanese valqua company.

3, the main part of the electrical box by the French production of Schneider.

4, all the hydraulic system with cartridge valve control, hydraulic main original using the German HOERBIGER company

5, the hydraulic pump uses aerospace standard low noise internal gear pump.

6, specializes in manufacturing factory processing cylinder, the sealing ring imported, overcome the phenomenon of oil leakage.

7, the use of Taiwan HIWIN linear guide rail and ball screw.

8, the hydraulic system uses the German EMB pipe joint to ensure the stability of the hydraulic system in the long run.

9, select Japan's Panasonic or MITSUBISHI servo drive and servo motor.



  • Place of Origin:  anhui
  • Brand Name:  laifu
  • Model Number:  100T-3200

type

Bending machine

brand

Lai Fu

Model

100T-3200

Main motor power

7.5 (kw)

weight

7 (kg)

Available size

3200 (mm)

Slider stroke adjustment

80 (mm)

principle

Cold forming

Shear times

10 (/min)

Dynamic type

Hydraulic pressure

Control form

numerical control

Object material

Metal

Scope of application

currency

Applicable industry

Stainless Steel Products

product type

Brand new
