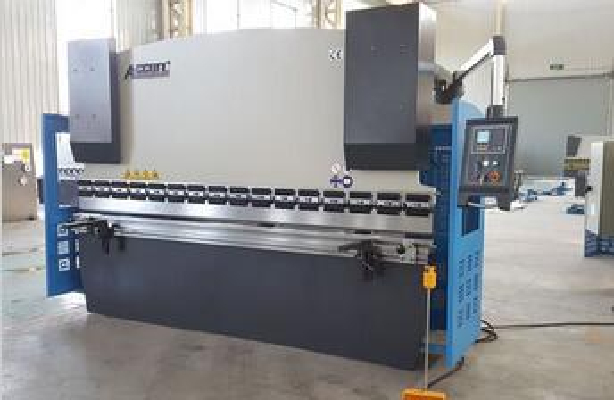

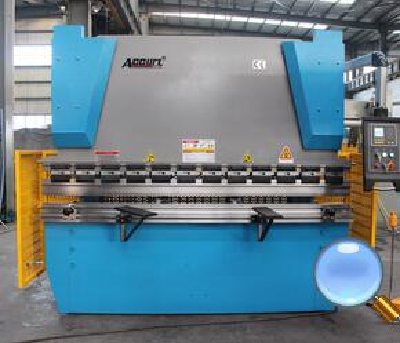

WC67K Series ( Half CNC )

Min.Order Quantity: 1 Set
Supply Ability: 100 Sets per Month
Port: Negotiable
Payment Terms: L/C,T/T

Get Latest Price:

*Quantity: Set/Sets

Add to My Favorites

Verified Supplier Anhui Jaco NC Machine Manufacturing Co., Ltd.

(Mainland) | Factory

Experience:2009-07-17

Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing

Product Details

Quick Details
Specifications

Place of Origin: anhui
Brand Name: laifu
Model Number: WC67K Series ( Half CNC )

Type	Norminal Force	Worktable Length	Distance between holes(mm)	Depth of throat(mm)	Ram travel （mm）
	（KN）	（mm）
40T/2200	400	2200	1850	230	100
40T/2500	400	2500	1850	230	100
50T/2500	500	2500	1850	230	100
63T/2500	630	2500	1900	250	100
63T/3200	630	3200	2560	250	100
80T/2500	800	2500	1990	300	100
80T/3200	800	3200	2560	320	100
80T/4000	800	4000	3000	320	100
100T/2500	1000	2500	2020	320	120/150
100T/3200	1000	3200	2600	320	120/150
100T/4000	1000	4000	3000	320	120/150
125T/3200	1250	3200	2580	320	120/150
125T/4000	1250	4000	3000	320	120/150
160T/3200	1600	3200	2600	320	200
160T/4000	1600	4000	3000	320	200
160T/5000	1600	5000	4000	320	200
160T/6000	1600	6000	5000	320	200
200T/2500	2000	2500	2050	320	200
200T/3200	2000	3200	2500	320	200
200T/4000	2000	4000	3000	320	200
200T/5000	2000	5000	4000	320	200
200T/6000	2000	6000	5000	320	200
250T/3200	2500	3200	2500	400	250
250T/4000	2500	4000	3000	400	250
250T/5000	2500	5000	4000	400	250
250T/6000	2500	6000	5000	400	250
300T/3200	3000	3200	2530	400	250
300T/4000	3000	4000	3000	400	250
300T/5000	3000	5000	4000	400	250
300T/6000	3000	6000	5000	400	250
400T/4000	4000	4000	3000	400	250
400T/5000	4000	5000	4000	400	250
400T/6000	4000	6000	5000	400	250
500T/5000	5000	5000	4000	400	250
500T/6000	5000	6000	5000	400	320
600T/4000	6000	4000	3000	400	320
600T/6000	6000	6000	5000	400	320
800T/6000	8000	6000	5000	400	320

Type	Max opening height (mm)	Main power (Kw)	Weight (Kg)	Overall dimension
40T/2200				(L×W×H)mm
40T/2200	320	5.5	2750	2200×1200×1910
40T/2500	320	5.5	3000	2500×1200×1910
50T/2500	320	5.5	3400	2500×1210×2000
63T/2500	320	5.5	4000	2500×1300×2210
63T/3200	320	5.5	4800	3200×1300×2210
80T/2500	320	7.5	5700	2500×1400×2300
80T/3200	350	7.5	6020	3200×1500×2300
80T/4000	350	7.5	7000	4000×1500×2400
100T/2500	320/350	7.5/11	6000	2500×1600×2400
100T/3200	370/400	7.5/11	6800	3200×1600×2600
100T/4000	370/400	7.5/11	8400	4000×1600×2700
125T/3200	370/400	7.5/11	7200	3200×1600×2600
125T/4000	370/400	7.5/11	8800	4000×1600×2700
160T/3200	460	11	10500	3200×1700×2700
160T/4000	460	11	11500	4000×1700×2800
160T/5000	460	11	14000	5000×1900×3100
160T/6000	460	11	19500	6300×1900×3200
200T/2500	460	11	10250	2650×1900×3200
200T/3200	460	11	12500	3200×1950×2800
200T/4000	460	11	13600	4000×1950×2800
200T/5000	460	11	14500	5000×1950×3100
200T/6000	460	11	21000	6000×1950×3300
250T/3200	590	18.5	19000	3250×2000×3200
250T/4000	590	18.5	20200	4000×2000×3400
250T/5000	590	18.5	23500	5000×2000×3400
250T/6000	590	18.5	27500	6000×2000×3400
300T/3200	590	22	20500	3200×2000×3450
300T/4000	590	22	22500	4000×2000×3450
300T/5000	590	22	25000	5000×2000×3450
300T/6000	590	22	30000	6000×2000×3450
400T/4000	590	30	25000	4000×2180×3500
400T/5000	590	30	29000	5000×2180×3500
400T/6000	590	30	35000	6000×2180×3800
500T/5000	590	45	44000	5050×3500×3700
500T/6000	590	45	55000	6050×3500×3700
600T/4000	590	55	45000	4050×4500×3700
600T/6000	590	55	60000	6050×4500×3700
800T/6000	590	55	75000	6300×4500×6000
